Gantt Chart

Generating a Gantt Chart

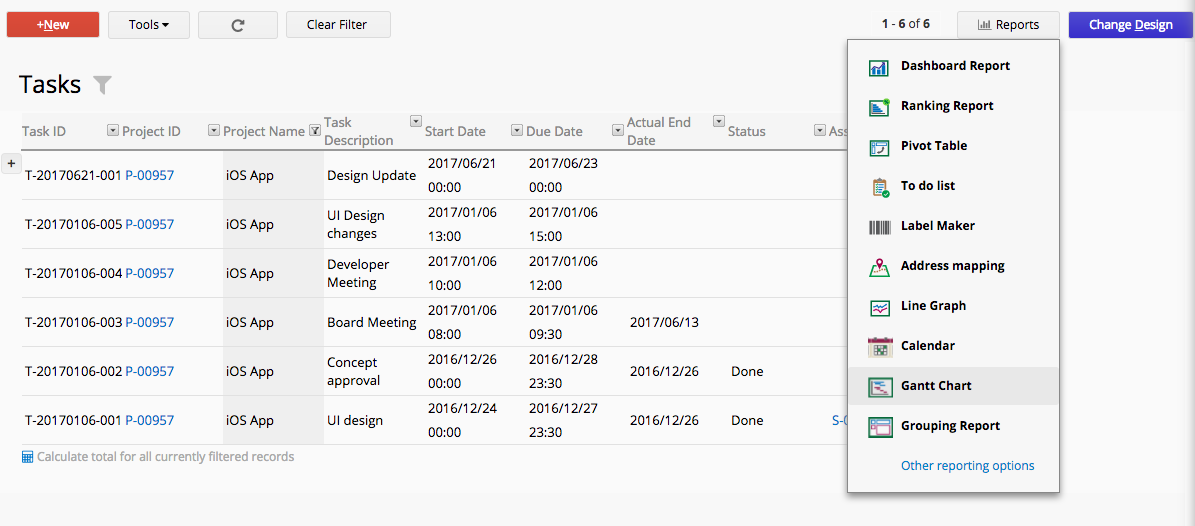

You can find Reports on the right side of your listing page or create report from the tab.

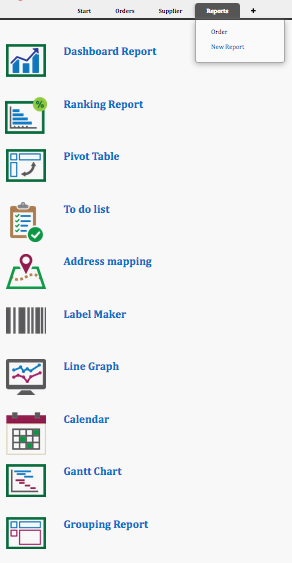

The Reports tab will display reports that you have saved, and an option to create new reports in your account.

Ragic can analyze your data to generate a gantt chart.

Configurations for Gantt Chart

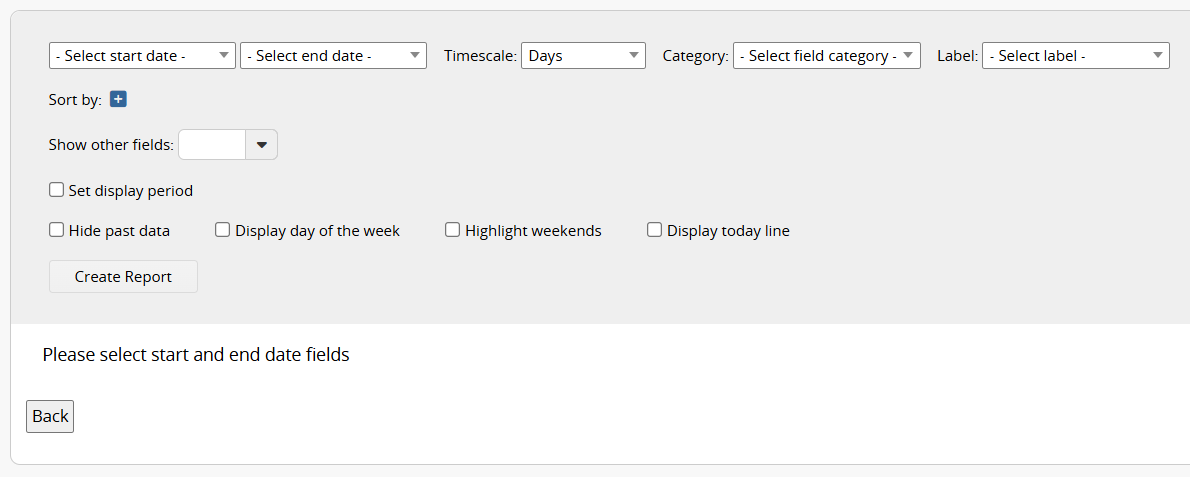

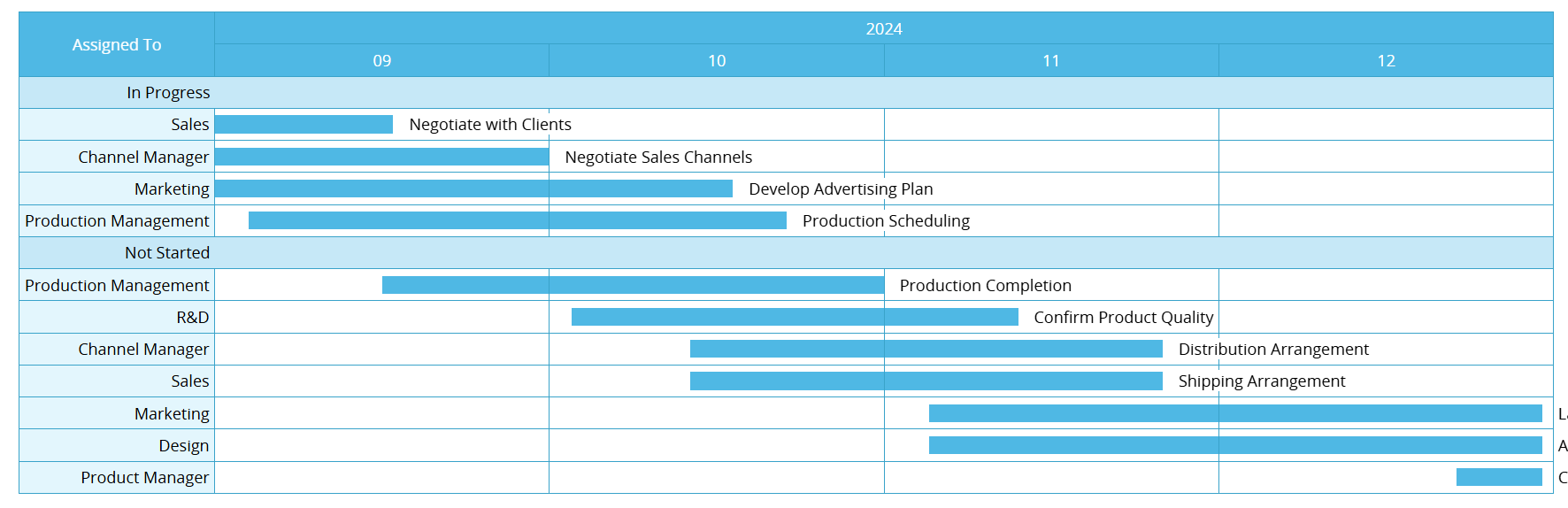

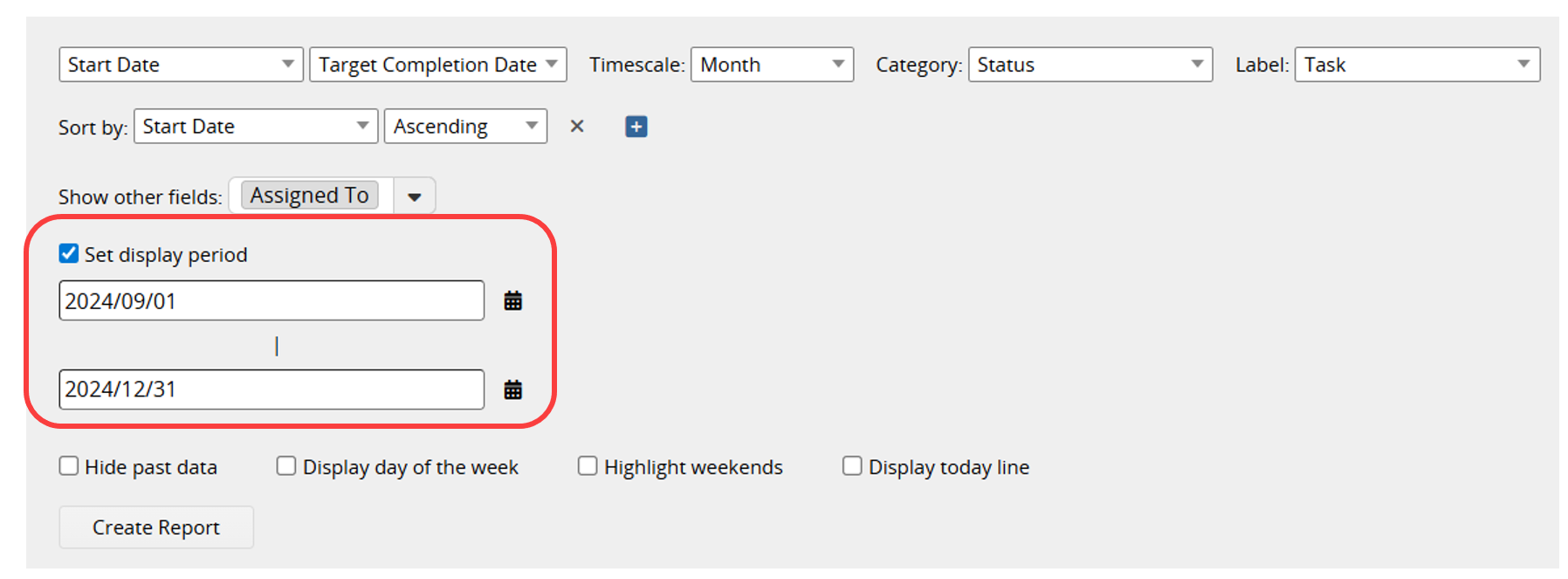

The gantt chart will be generated based on the selected Start Date field and End Date field. You can configure the Labels to be shown with the data.

You can configure the Timescale to determine if your data will be shown by Days, Hours, or Quarter Hours.

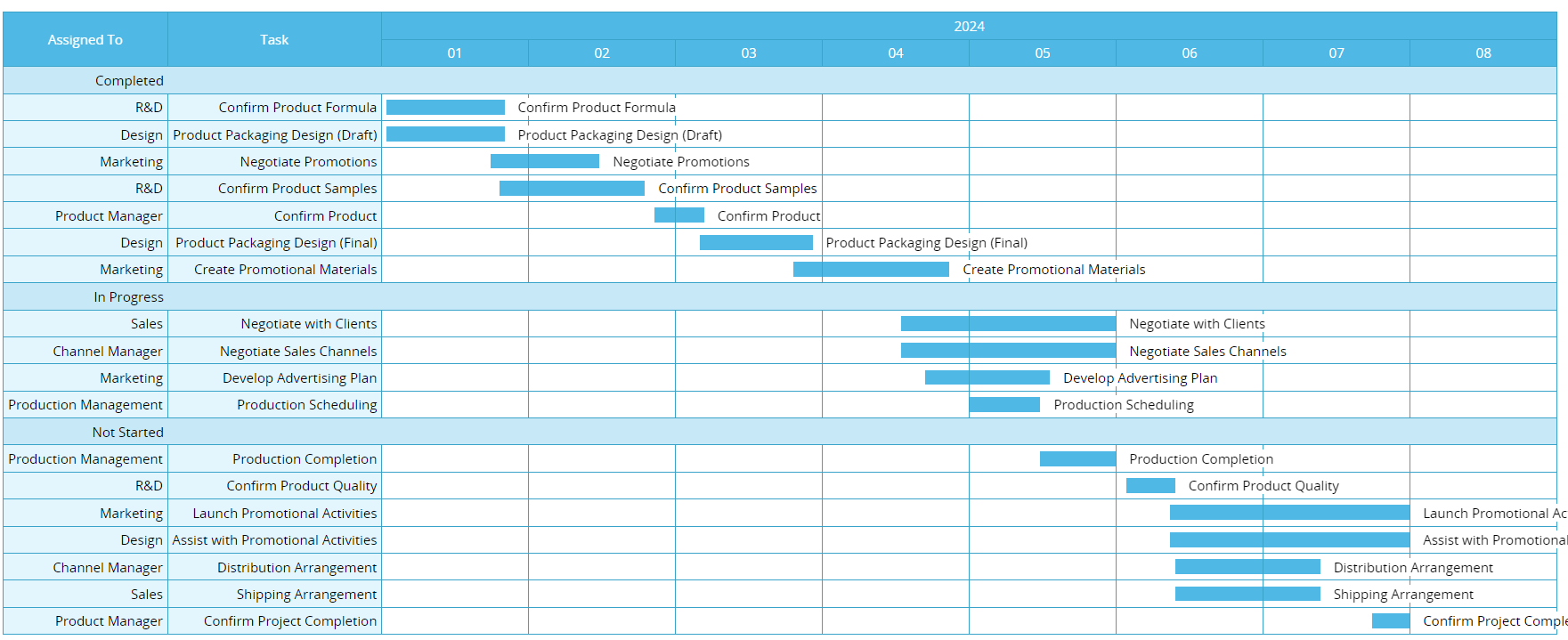

To show the data by each categories according to a field, you can select a field as a Category.

To include more information on the Gantt Chart, you can configure it to show other fields.

Saving your Report

If you generate the same gantt chart often, you can save your report by clicking the Save as a report button that comes up on the right side when you generate a report.

Printing or Saving your Report as a PDF

You can also save as a pdf file or print your report by clicking the print icon on the right side.

If you want to hide the border of report when printing, you can click the border icon on the right side.

Viewing Saved Reports

You can find your saved reports under the Reports tab for easy access.

Filtering your Report with Views

Your report will be generated according to the filter you have applied, but you can also generate reports for a certain shared view to display results within a different filtered criteria.

If a fixed filter view is applied to your sheet, the report will display results accordingly.

Report Embed

Ragic applications provide you with a tool to embed reports on your website. Alternatively, reports can be sent as a separate link to others.

The report embed tool can be found by clicking the icon in the upper right corner on any report.
