Multiple Versions

Creating a Duplicate Sheet

In some cases you may want to create different versions of the same form so that you may let different groups of users see different versions of the form.

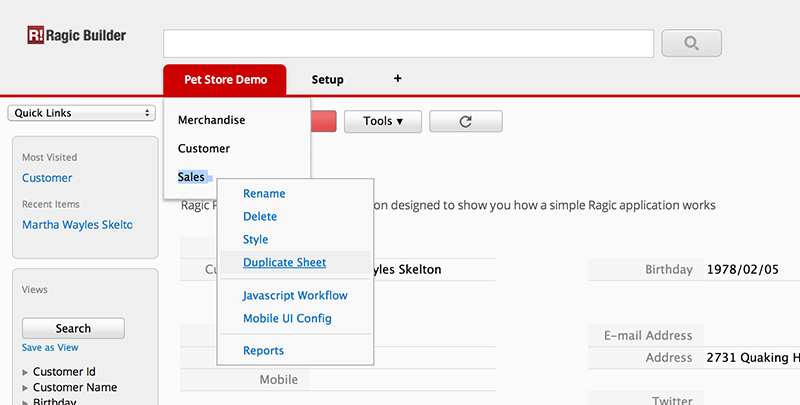

To create two versions of the same sheet, right-click on the sheet name, or click on the arrow when you hover on the sheet's name, and select Duplicate Sheet.

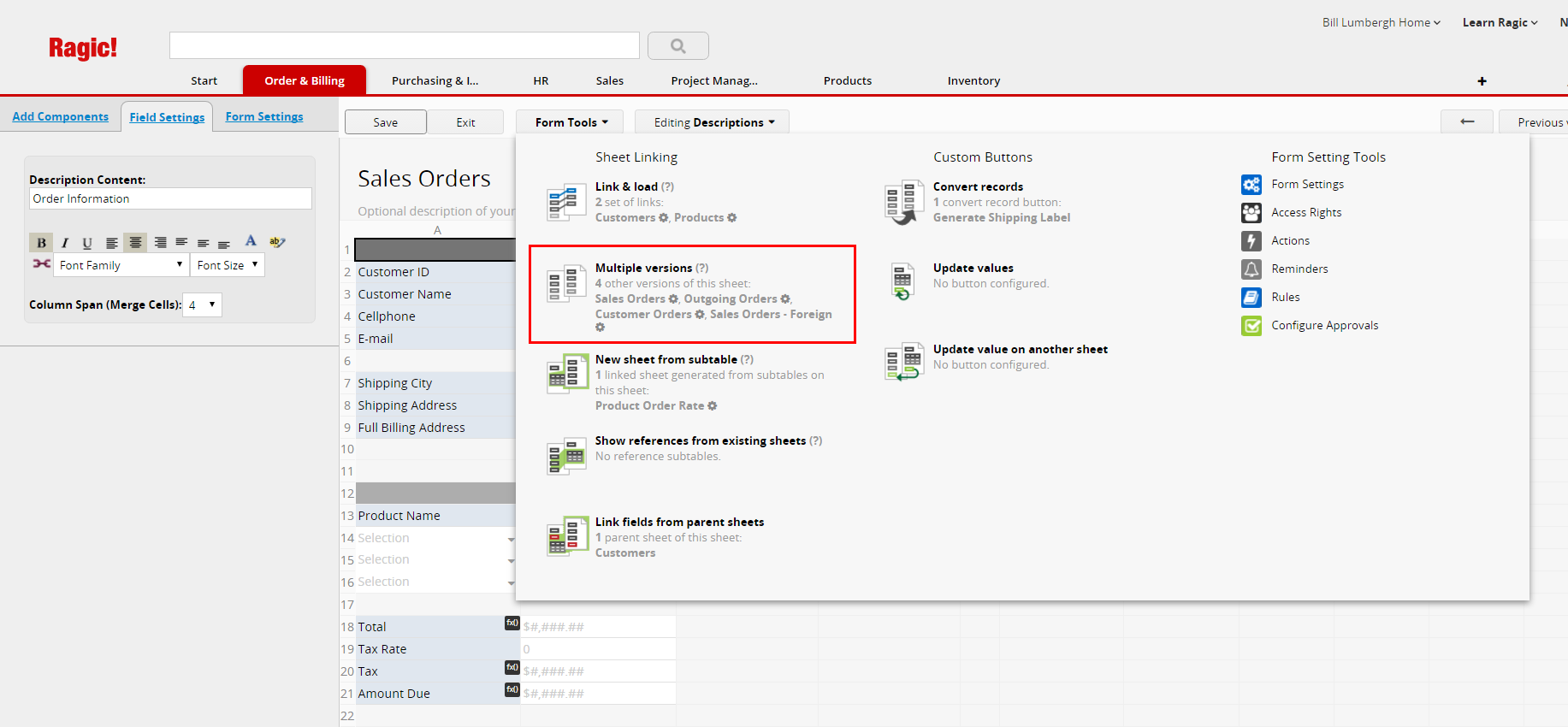

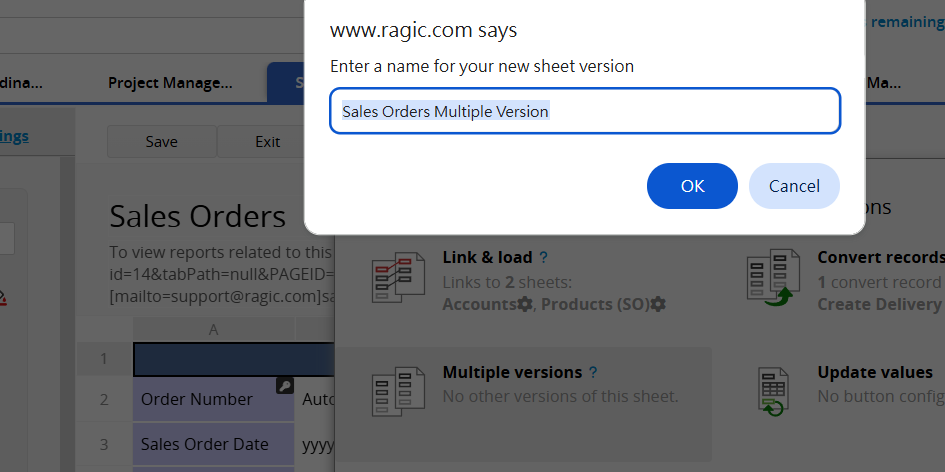

Another way to do this is to click on the Multiple Versions option in the Form Tools menu in the Design Mode, under the Sheet Linking Tools category.

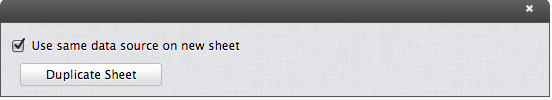

Check if the box that says Use same data source on new sheet is selected and click on the Duplicate Sheet button.

Note, if you uncheck the box "Use same data source on new sheet", it will create a copy sheet that has same design and structure as the original sheet without copying the records or sharing the data source. If you would like to copy or duplicate a tab with all sheets under it, you may refer to this article.

Ragic will create a second sheet that has the same name, fields, and data. The two sheets point to the same set of entry values in the database, therefore when you enter a new entry in one of the sheets, it will also appear on the other. All edits and deletion of entries will also be reflected on both sheets.

On the other hand, the design changes you make in one of the sheets such as field name, layout, formula, default value, and advanced field setting will not be reflected on the other sheet. This feature is extremely useful since you can delete fields that you want to keep confidential on one of the sheets, but still have the data on the other sheet. You can also create a fixed filter for this reason. Learn more about creating a Fixed Filter in our Shared View and Fixed Filter documentation.

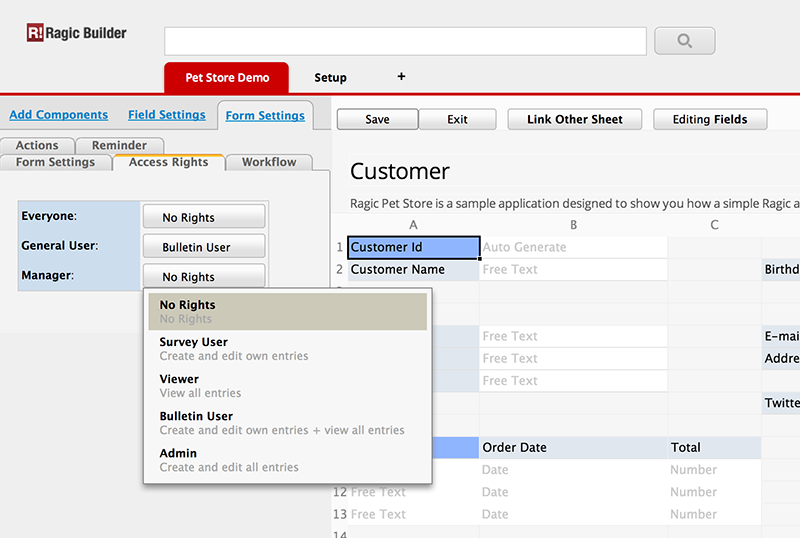

After having your sheets display the necessary amount of information, you can set up the Access Rights from the Design Mode on the left sidebar. You can set the two sheets to be visible to different user groups with different access rights.

Configuring this should be pretty useful in cases where you need different user groups see similar pools of data in different ways. In the example below, there are two versions of an employee sheet, one copy seen from the HR department's perspective, and the other copy edited for the IT department.

click to enlarge

click to enlarge

This feature is also useful when you have a large database on only one sheet and would like to display certain fields in another listing page.

Adding a New Field or Subtable on Multiple versions

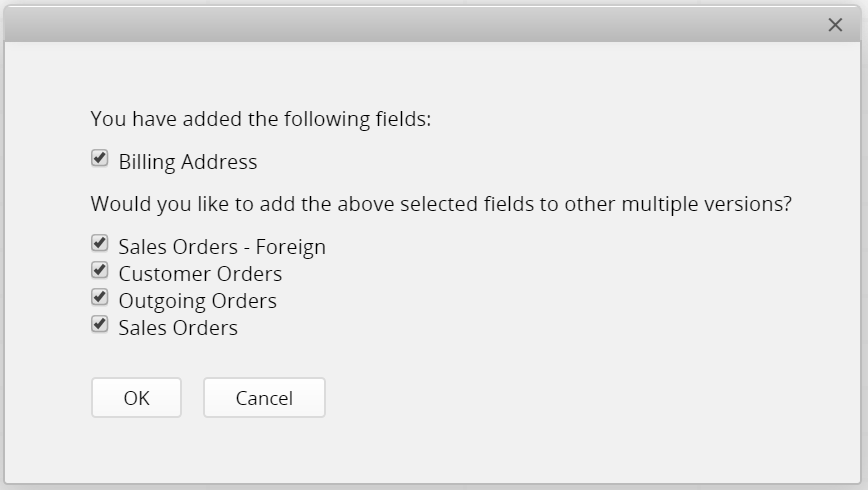

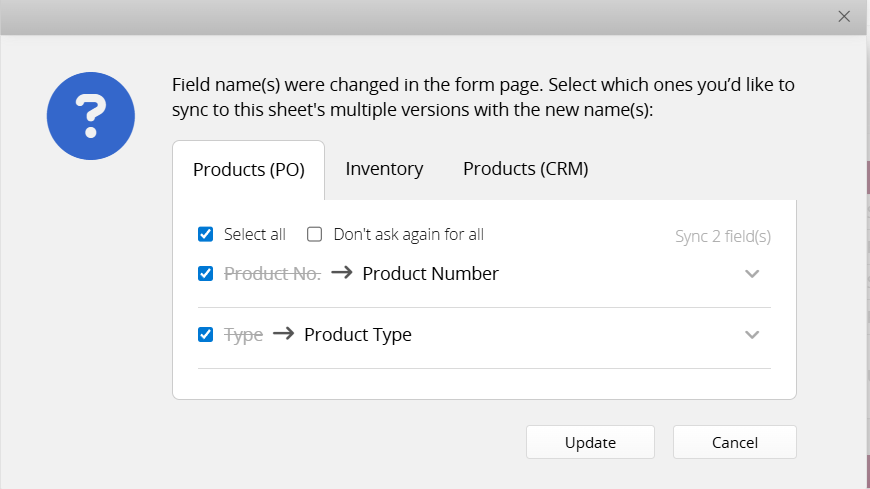

If you create a new field in one multiple versions of a sheet, system will ask you whether or not to add this field to other versions as well. The location of the field will be on the exact same cell or nearby.

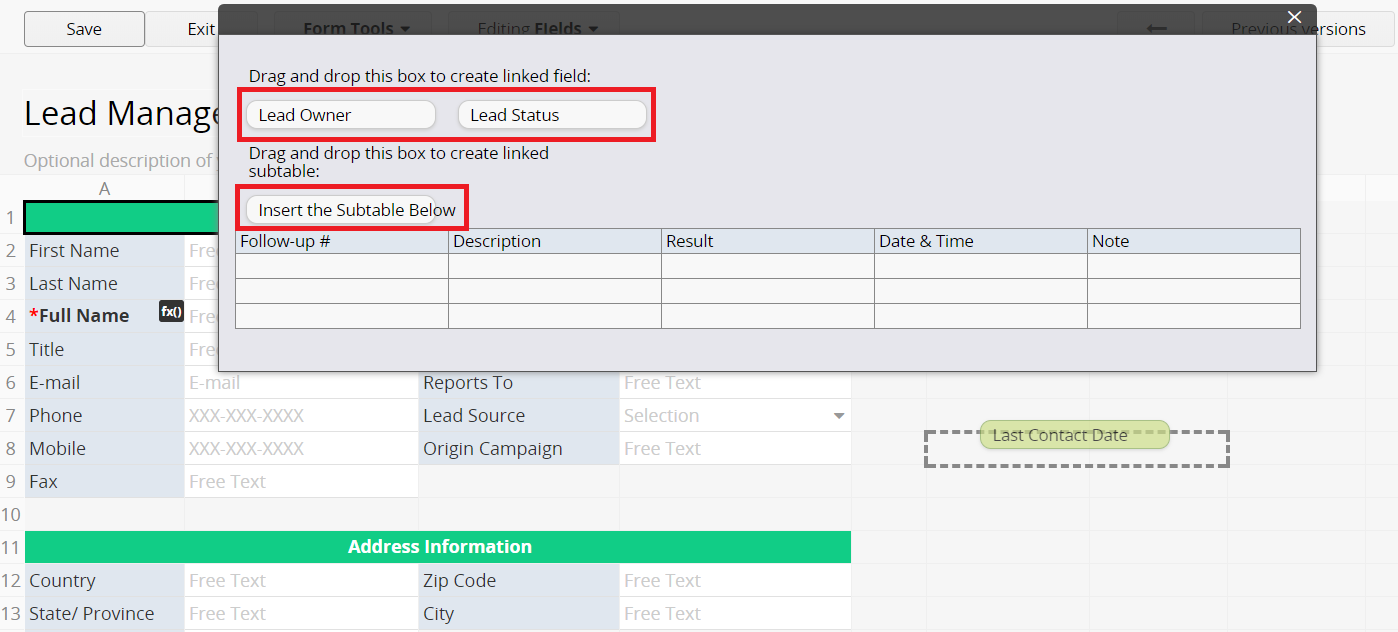

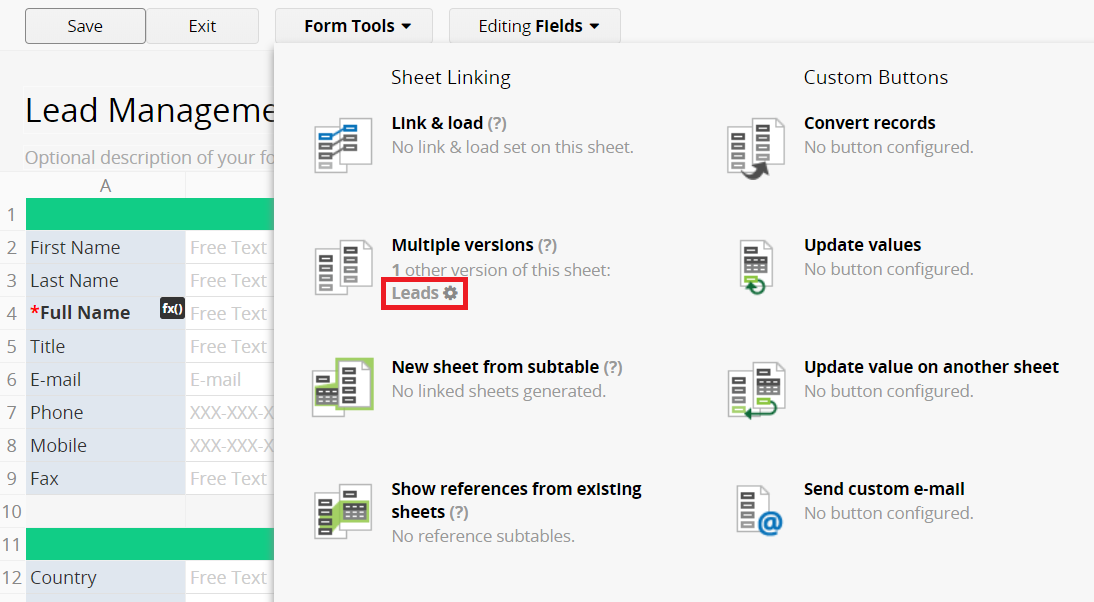

If you need to manually add a new field or subtable to the design in multiple versions of a sheet, this new field or subtable will need to exist on any copy of this sheet first. Next, you'll need to navigate to the version of the sheet you'd like to add the field or subtable that already exists for another version. Click on the Form Tools menu in the Design Mode to view all the existing links under the "Multiple Versions" title. You'll see the all other versions of this sheet where you can then add available fields or subtables by clicking on the sheet name where your fields or subtable exists. A pop-up will appear that show available linked fields and subtables.

Drag and drop the new fields or subtables you would like to add that already exist onto your sheet from this configuration.

Remember that the fields that you are adding will show up for every user that has the correct access rights for this sheet.

Switch to a Different Version of an Entry

If you have multiple versions of the same sheet, you can add an action button to easily switch between the same record's entries in other sheets within Ragic.

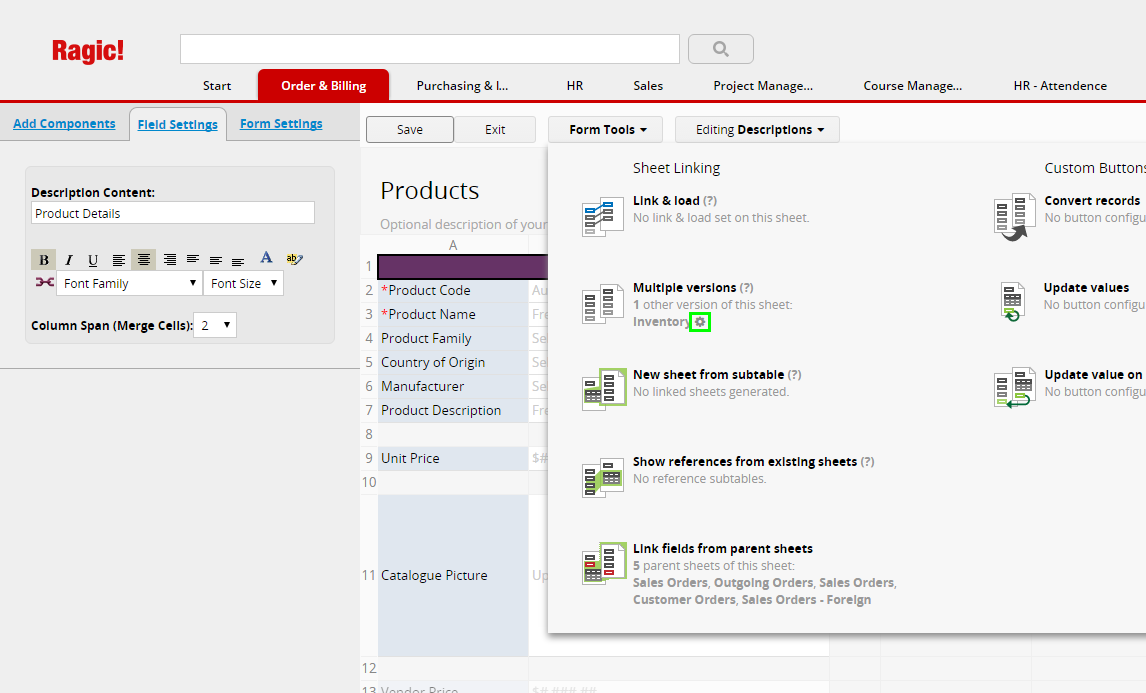

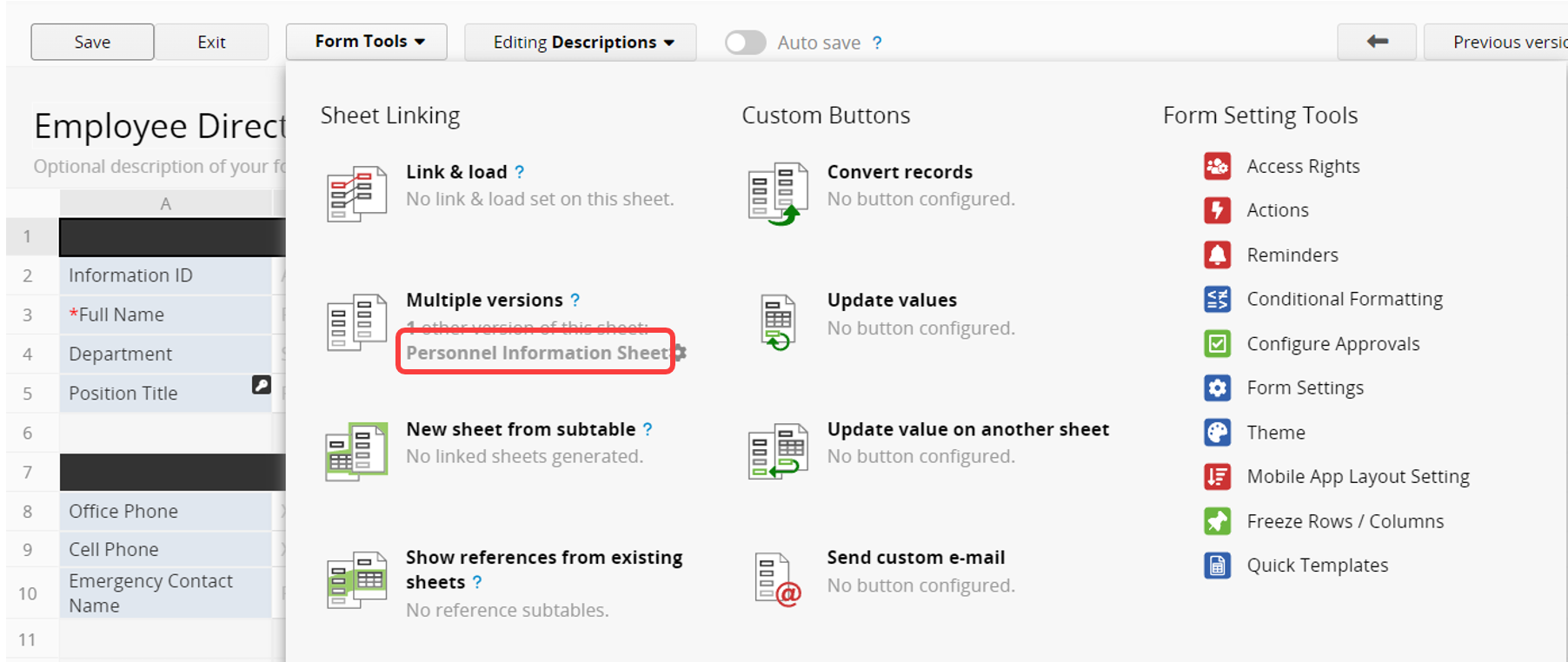

To do this, go to the design mode of the form page you would like to add the action in. You will find a list of your linked sheets under the Form Tools menu, sorted beneath the type of linking. Click on the gear icon next to the version of the sheet you would like to navigate to through your entries.

You will be prompted to name the button that will be added to your action.

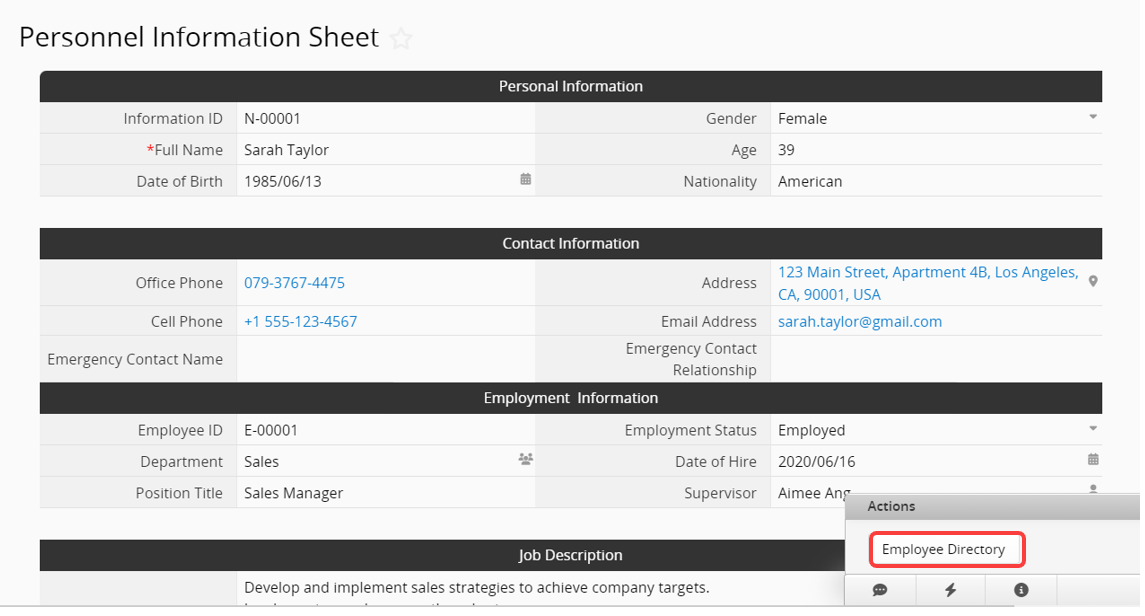

This will create an action button that will take you to the URL from each entry to the associated entry in your duplicated sheet.

To have a link back to the first sheet, you can redo these steps in your second sheet.

Note: If you want to remove action button, you may refer to this article
